Wheel trencher WE
The wheel trencher is designed to carry out excavations of different thickness and depth for the laying of optical fiber or for the laying of other cables of any kind.
Thanks to the four outlets for discharging the waste material, a large amount of material is expelled; therefore a high forward speed is allowed, thus saving time when excavating the trench.
The hydraulically operated excavation cleaning tooth allows you to precisely clean the trench after the cutting disc has passed. This allows you to reach precise and predefined depths, without the need for double passes or having to clean up the excavation with other tools.
The lateral wideners push the spilled material out of the transit area of the tires or tracks of the carrier machine, thus ensuring a constant working depth and greater stability and absence of vibrations.
All movements are hydraulic: translation, in order to carry out excavation work flush with the wall; depth adjustment, to excavate at the desired depth, and the activation of the cleaning tooth.
The cutting disc is made up of sturdy peaks for concrete or rock, and can be of different thicknesses depending on the type of application and needs.
On request, it is possible to have the water pressure kit with sprayers to reduce dust.
Wheel trencher WE
The wheel trencher is designed to carry out excavations of different thickness and depth for the laying of optical fiber or for the laying of other cables of any kind.
Thanks to the four outlets for discharging the waste material, a large amount of material is expelled; therefore a high forward speed is allowed, thus saving time when excavating the trench.
The hydraulically operated excavation cleaning tooth allows you to precisely clean the trench after the cutting disc has passed. This allows you to reach precise and predefined depths, without the need for double passes or having to clean up the excavation with other tools.
The lateral wideners push the spilled material out of the transit area of the tires or tracks of the carrier machine, thus ensuring a constant working depth and greater stability and absence of vibrations.
All movements are hydraulic: translation, in order to carry out excavation work flush with the wall; depth adjustment, to excavate at the desired depth, and the activation of the cleaning tooth.
The cutting disc is made up of sturdy peaks for concrete or rock, and can be of different thicknesses depending on the type of application and needs.
On request, it is possible to have the water pressure kit with sprayers to reduce dust.
Video

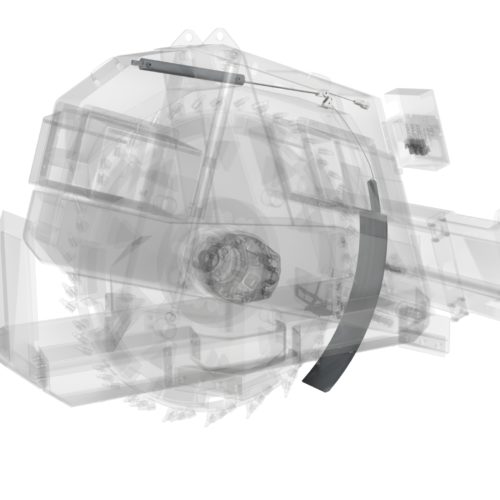

Excavation cleaning tooth:
To perfectly clean the excavation made from the disc, you can use the cleaning tooth. It is made with a sturdy Hardox sheet, which can be controlled hydraulically; so that, if necessary, it can be lowered and the excavation can be cleaned of any residual material.
Hydraulic depth adjustment with support skids, which allow great stability:
Large skids that are controlled by two hydraulic cylinders to adjust the digging depth. Digging depth ranging from 150mm to 450mm for the WE 450 model and from 200mm to 600mm for the WE 600 model.
Hydraulic depth adjustment with support skids, which allow great stability:
Large skids that are controlled by two hydraulic cylinders to adjust the digging depth. Digging depth ranging from 150mm to 450mm for the WE 450 model and from 200mm to 600mm for the WE 600 model.
4 material outlets (2 per side):
To ensure greater ease of exit of the material excavated from the disc, there are 4 large material outlets placed on the body of the wheel excavator. This facilitates the advancement of the machines and ensures that the operator can work with greater advancement as the material comes out more easily from inside the wheel excavator, as well as better cleaning of the excavation.
